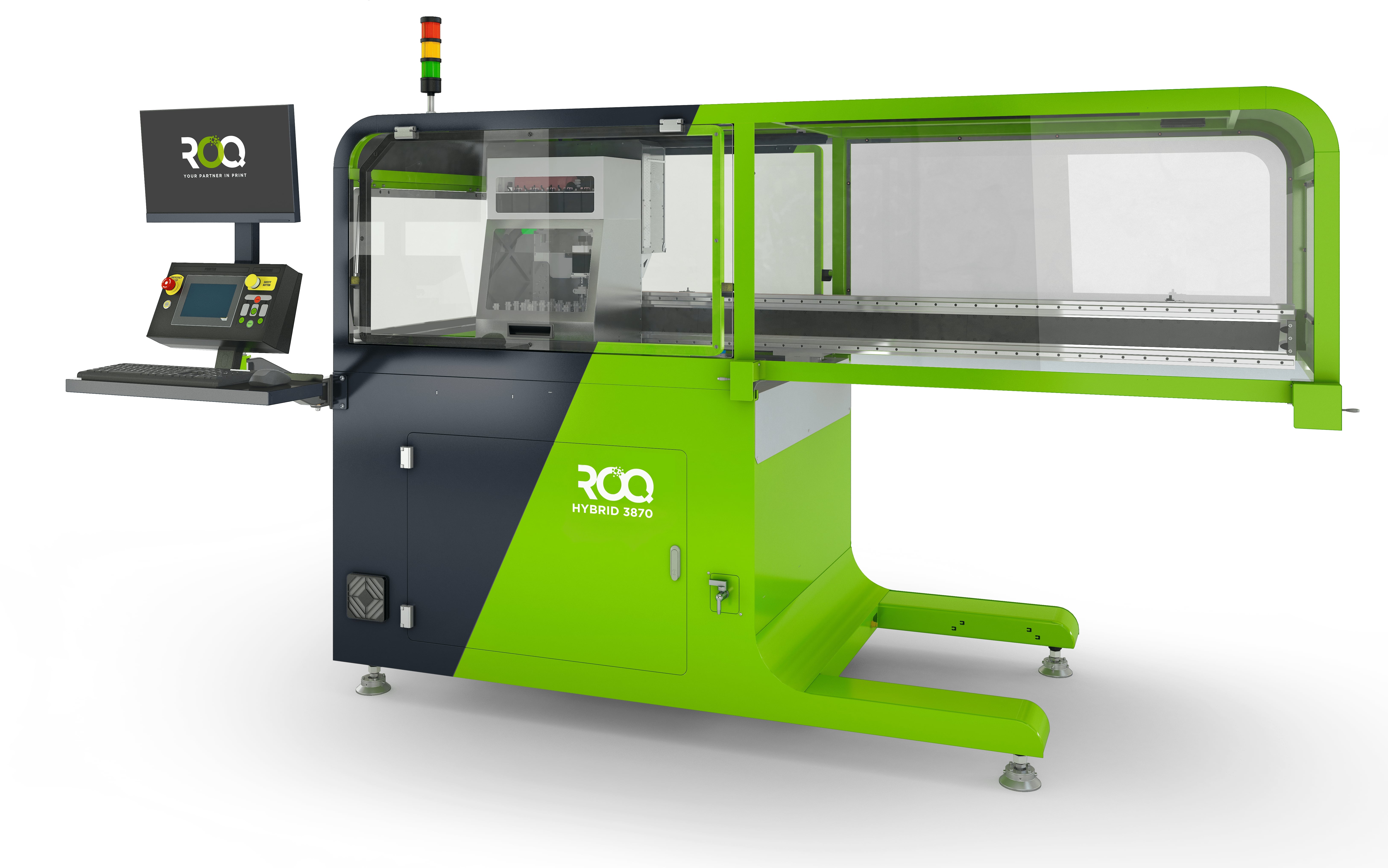

ROQ HYBRID
Those demanding jobs that you need to think 2 or 3 times before accepting, they will become easy jobs for you and your company. With the ROQ Hybrid you can combine glitter, foil, 3D, etc. with the precision of colours, high resolution and huge colour gamut all with a great hand feel.
Technical Specs
  • 5070 model with a swath of 24 cm
  • 3870 model with a swath of 38 cm
  • Max. productivity 320 pieces/hour
  • Perfect synchronization with an automatic screen printing machine;
  • Intuitive to use;
  • High-end industrial print heads with recirculation incorporated;
  • CMYK or CMYK +2 colors;
  • Maximum resolution 635X2400 DPI;
  • XL print area;
  • Print height 1 to 6mm;
  • Z-axis adjustable to the height of the fabric to be printed;
  • Uses pigmented ink – ROQ Micropigment 2.0;
  • Tailored RIP software – ROQ Studio powered by Neostampa.

Description

The ROQ Hybrid can come with 8, 12 or 18 print heads.

The ROQ Hybrid with 8 print heads use the CMYK colours. The version with 12 print heads use the CMYK + 2 colours enhancing the available colour gamut.

One of the reasons why ROQ decided to use the Fujifilm Dimatix for print head is the fact that it is possible to repair the nozzles. This feature allows for a greater lifespan of the print heads. The ROQ Hybrid can come with a maximum printing size of 500x700mm.

The ROQ Hybrid adapts to the type of textile you are printing on. The Z axis can be adjusted (up to 20mm) to adjust the different height of the textile you are printing on. To partner with the ROQ Hybrid, ROQ also has a new line of digital inks and products as well the ROQ Studio a RIP software powered by Neostampa. ROQ, as always, supplies solutions. The ROQ Hybrid is the solution for the future of screen printing.

Your life will become so much easier.
