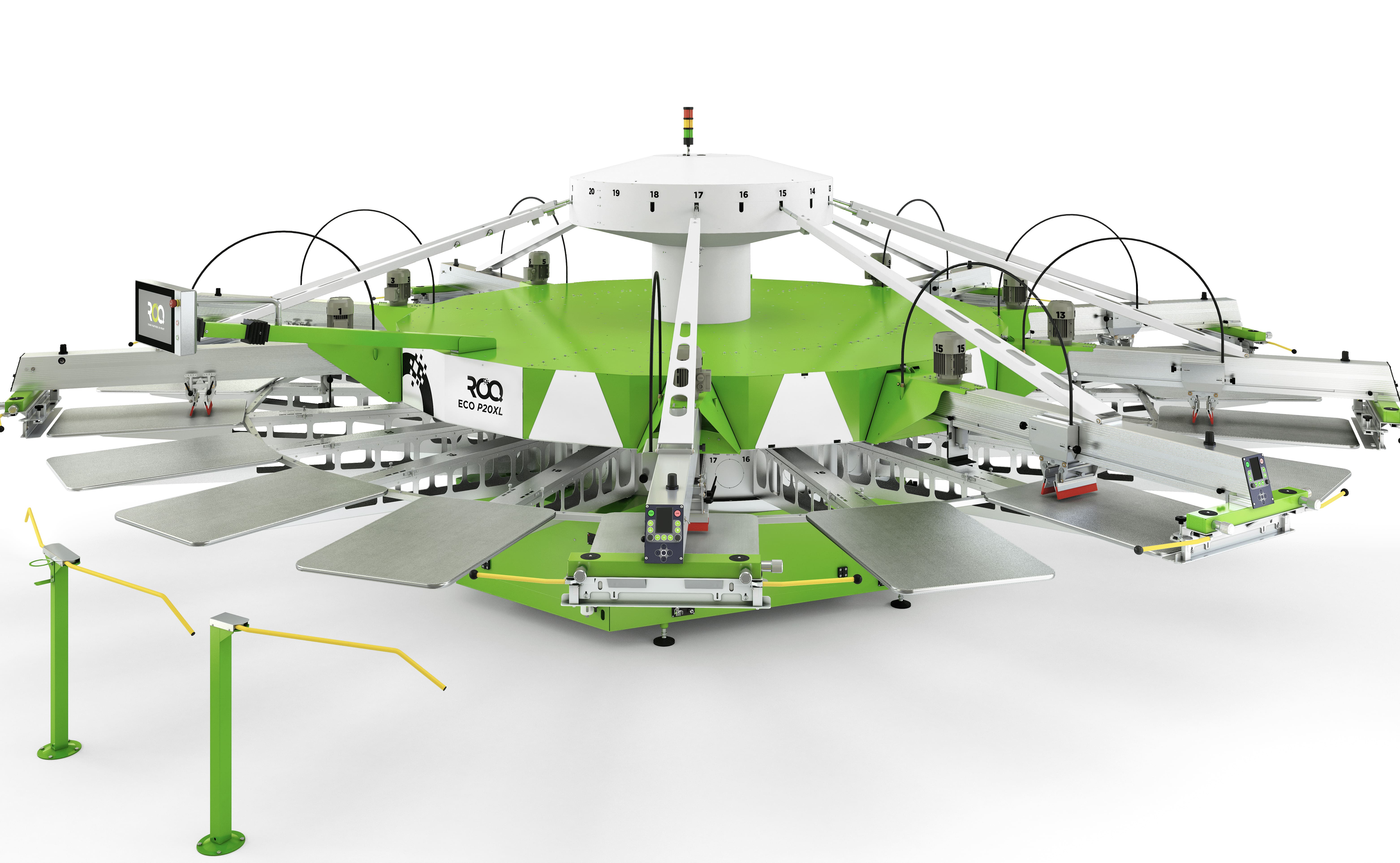

ROQ ECO
The ROQ Eco incorporates ROQ’s latest technological innovations. These are included after having been tested and proven by our partners.
Technical Specs
  • Aluminum honeycomb pallets;
  • Squeegees with electric movement with ac variator;
  • Independent control panel on all print heads;
  • Choice of pneumatic screen holder: ”U” clamp or pin system;
  • Print head central elevation;
  • AC servo-motor rotation system;
  • Print heads with high-lift position for quick and easy screen cleaning;
  • Central control panel with Polychromatic LCD touch screen (10”);
  • Micro registration screen system with vernier scale;
  • Individual controls for managing print and flood speed, height, angle of the squeegees and stroke length;
  • Placement of the Flash Cure units under the print head.

Description

The ROQprint Eco incorporates ROQ’s latest technological innovations. Which have been already tested and proven by our customers in their shops. It ranges from a minimum of 12 pallets up to a maximum of 20 pallets and from a minimum of 1 color up to 18 colors. The print area goes from 450 mm x 550mm up to a maximum of 800mm x 1100mm. The screen printing machine ROQprint Eco is the ideal choice for the most demanding printer for it as an efficient response for every task. Capable of outputting a maximum of 1300 pieces per hour this screen printing machine is a powerhouse. As an added bonus this platform is the carousel screen printing machine that best uses the ROQflock and ROQfoil modules due to its independent print head elevation feature. This elevation system makes this screen printing machine especially efficient in printing with water based inks due to the fact that the printer can manage the time that the screen are in contact with the hot pallets. Being less time in contact means less evaporation of the inks, leading to less stops during the printing of the job, leading to more earnings for the shop.

The ROQprint Eco is built with top of the line materials. ROQ’s biggest focus is to create and deliver a top quality machine that requires minimum maintenance. ROQ believes that the printer must spend the least amount of time setting up jobs, cleaning the screens or dealing with the maintenance of the machine. For this every part of the ROQprint Eco is top designed for durability and precision but always pushing for innovation without sacrificing any quality.

Still ROQ understands that having the best screen printing machine is not enough. When a printer makes the smart decision of acquiring a ROQprint Eco, the printer will also be acquiring a worldwide assistance network and a company that is committed to help and fix any situation that might arise. Usually, these punctual issues are solved in record time due to the fact that in the engineering of this screen printing machine all of these factors were taken in account and it is very easy to find parts worldwide.

ROQprint Eco a ROQsolid solution!

Options
  • ECO Vacuum Version, with Suction Pallets;
  • Laser Markers;
  • Power and Control Connections for Flash are built into the machine base;
  • Flash Cure units;
  • Compatible with ROQ FLOCK;
  • Compatible with ROQ FOIL;
  • Skip Function.
